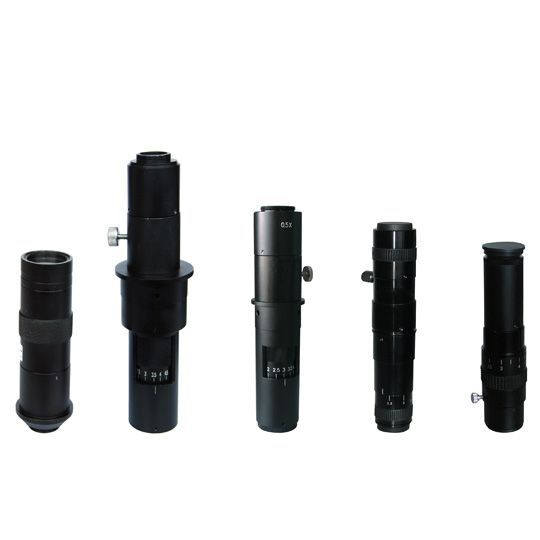

AFTvision?ZL系列采用全新超低失真、高分辨率设计，具有清晰度高，倍率可变，光学无畸变，高对比度等特点。采用焦阑法，测量误差少，是一款能配合百万像素使用的，用于高精确检测、高精度尺寸测量、目标位置定位等中。

广泛用于丝网印刷机械、贴合、切割、PS打孔机、PCB补线机、PCB打孔机、玻璃割片机、点胶机、SMT检测、贴版机等工业精密对位、定位、零件确认、尺寸测量、等视觉对位、测量装置等领域。

型号????放大倍率???工作距离(mm) 视场13” (mm) 视场12” (mm) 接口??大兼容CCD 外形尺寸

ZL0911 ×0.3~×2. 188~93 13.9×10.4~2.3×1.7 18.5×13.9~3.0×2.3 C 12" φ35*164

ZL0911??×0.3~×2.1 89~91??????14.3×10.7~2.3×1.7 19.0×14.3~3.0×2.3 C 12" φ50*169

ZL0910??×0.7~×4.5 88~93??????6.7×5.0~1.0×0.8 9.2×6.9~1.5×1.1 C 12" φ50*245

ZL0910??×0.3~×2.1 89~91 14.3×10.7~2.3×1.7 19.0×14.3~3.0×2.3 C 12" φ50*169

ZL0900 ×0.3~×1.2 107~40 15.4×11.5~4.0×3.0 20.5×15.4~5.2×3.9 C 12" φ39*108

ZL0920 ×0.6~×4.3 99~92 7.7×5.7~1.1×0.8 9.0×6.9~1.5×1.1 C 12" φ37*220

ZL0930??×0.9~×4.3 89~87 5.3×4.0~1.1×0.8 7.0×5.3~1.5×1.1 C 23" φ36*175

型号?????放大倍率????工作距离(mm) 视场13” (mm) 视场12” (mm) 接口??大兼容 CCD外形尺寸

ZML1000 ×0.2~×1.6 145~52 21.0×16.9~3.0×2.3 29.0×21.0~4.0×3.0 C ~12 φ28*110

ZML0912 ×0.35~×2.25 85-90 13.3×10~2.1×1.6 18.3×13.7~2.9×2.2 C 12〞 φ28*167

ZML0912 ×0.7~×4.5 85-90 6.8×5.1~1.0×0.7 9.3×7.0~1.5×1.1 C 12〞 φ28*181

ZML1010 ×0.3~×0.5 226~164 16.1×12.1~10.1×7.6 21.5×16.1~13.5×10.1 C 23” φ28*67

ZML1011 ×0.6~×0.7 141~127 8.7×6.5~6.6×5.0 11.6×8.7~8.8×6.6 C 23” φ28*86

ZML1012 ×0.7~×1.0 142~116 7.2×5.4~4.9×3.7 9.6×7.2~6.5×4.9 C 23” φ28*76

ZML1013 ×1.1~×1.6 122~106 4.3×3.2~3.1×2.3 5.7×4.3~4.1×3.1 C 23” φ28*96

ZML1014 ×1.5~×2.1 125~105 3.2×2.4~2.3×1.7 4.3×3.3~3.1×2.3 C 23” φ28*86

ZML1015 ×2.2~×3.2 127~110 2.0×1.5~1.5×1.1 2.7×2.0~2.0×1.5 C 23” φ28*116

ZML1016 ×2.7~×3.6 118~102 1.8×1.4~1.35×1.0 2.4×1.8~1.8×1.35 C 12 φ28*117

ZML1023 ×0.5~×0.7 67~49 10.5×7.9~7.1×5.3 14×10.5~9.4×7.1 C 23” φ28*75

ZML1024 ×0.4~×1.1 211~106 12.4×9.3~4.4×3.3 16.5×12.4~5.9×4.4 C 23” φ28*75
