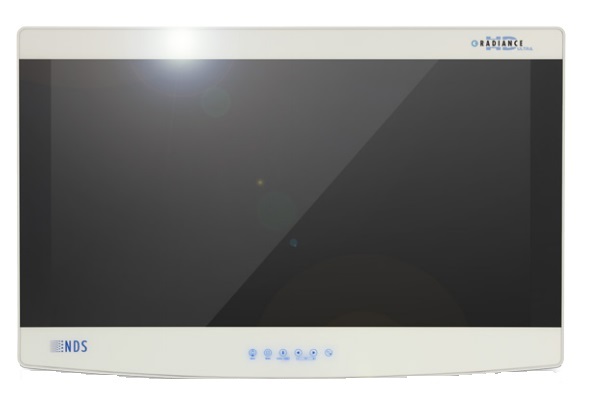

NDS高端外科高清显示器27” Radiance Ultra

关键词：外科显示器，高清,27",3G-SDI,DVI,1920*1080,内窥镜监视器

高端外科高清显示器

配备 Corning Gorilla高强度抗刮伤保护屏

27” Radiance Ultra显示器选用业内亮度高的LED背光灯，提供了900 cdm2高亮度显示。它大大改善高亮度环境下的抗眩晕和防反射 。提升了对比度，增强了更多细节的可读性。NDS独有的 Medi-Match色彩校正技术配合 Intelli-guard背光稳定技术，提供了卓越的影像品质，确保每台NDS显示器色彩的一致性。友好的感染控制设计可快速方便的进行消毒，提高了手术室的工作效率。

特性：

无边框 Corning Gorilla 保护屏面板

改善高亮度环境下的眩晕和反射光线的干扰

确保每台NDS显示器色彩的一致性

康宁大猩猩玻璃保护屏，方便快速消毒灭菌

业内高亮的度LED背光

独有Medi-Match 色彩校准专利

Intelli-guard?背光稳定技术，兼容DICOM 3.14灰阶校准

灵活的平台及可定制化信号输入菜单

内置ZeroWire无线接收器

参数：

IMAGE PERFORMANCE

Display Panel Type AM TFT with IPS, Ultra-Bright LED Backlight

Image Size (W x H) 23.5 x 13.2 inches (598 x 336 mm)

Viewing Area (Diagonal) 27.0 inches (685 mm)

Resolution (H x V) 1920 x 1080 (Full HD), 16:9 Aspect Ratio

Pixel Pitch 0.311 mm

Luminance 900 cdm2 (Typical) @ 6500°K

Color Calibration Proprietary Medi-Match? Color Calibration

DICOM Calibration DICOM 3.14 Compliant (Gamma Setting)

Backlight Stabilization Intelli-guard, User Enabled Option

Contrast Ratio 1000:1 (Typical)

Number of Colors 1.07 Billion

Color Gamut BT.709 or SMPTE-C

Viewing Angle 178? (Horizontal & Vertical)

Response Time 14 ms (Typical)

Display Latency Less than 1 fr[x]ame (up to 16 ms)

ULTRA GENERAL

Input Power Requirement 24 Volts DC

DC Power Consumption 70 Watts (Max)

Sealed Front Panel Material Corning? Gorilla? Glass (Double AR Coated)

Control Button Interface Capacitive Type, Hand Proximity Sensing

IO Cable Cover Built-In IO Cover with Cable Management

Dimensions (W x H x D) 26.7 x 17.5 x 3.3 inches (678 x 445 x 84 mm)

Weight 19.5 lbs (8.9 kg)

Temperature Operating: 0 to +40°C (+32 to +104°F)

Storage: -20 to +50°C (-4 to +122°F)

Humidity Operating: 20 – 85% RH

Storage: 5 – 85% RH

Mounting 100 mm VESA
